1.Overview
4000A High Current Injector,combines the advantages of similar products at home and abroad, using CNC technology, strong anti-interference ability,it has the advantages of large output power, small size and light weight. Mainly used in 3-Phase Current Transformer Temperature-Rise Testing System.
2. Testing System List and Quantity:
|
No |
Product Description |
Model |
Q.ty |
Remark |
|
1 |
Three-Phase Testing Power and Control & Measure System |
HES3-30 |
1set |
|
|
2 |
Three-Phase Current Generator |
SLQ3-20/4 |
1pcs |
|
|
3 |
High-Current Test Cables |
—— |
1set |
The buyer provide |
|
4 |
Secondary Burden |
—— |
1pc |
The buyer provide |
3. Main Technical Data:
| System Usage: | Three-Phase Current Transformer Temperature-Rise Testing |
| Max.Output Current: | AC 4000A/Phase |
| Operation Model: | Continuous operation |
| Power Supply: | AC 3x380V±10%, 50Hz |
| Rated Capacity: | 3x30kVA |
| Control Model of the Testing Power: | l Automatic adjustment by PC
l Manual adjustment |
| Output Model of the High-Current: | Fixed Terminal Output |
| Time Control Function: | Provided |
4. Details of the Technical Data
Products Information of the Three-PhaseTesting Power and Control & Measure System (Model:HES3-30)
Remarks: The picture is only for reference, it will difference from actual product.
Main Technical Data:
| Power supply part: | |
| Iuput Voltage: | AC 3x380V±10%, 50Hz |
| Output voltage: | AC 3x (0-380V), 50Hz |
| Rated capacity: | 3x30kVA |
| Rated current: | AC 75A/Phase |
| Power control part: | |
| Control Model
of the Testing Power: |
-Automatic adjustment by PC |
| -Simulation operation system | |
| -Manual adjustment (Electrial adjustment) | |
| Regulatory Elements: | Double-servo motor and double voltage regulator or programmable power |
| Other Part: | |
|
Display Function: |
Output Voltage, Output Current |
| High-Current Display, AC 0-4000.0A, Resolution:0.1A, 0.2CL | |
| Timer, Display range:0.01H-99.99H | |
| Protection function: | Provides the overcurrent and overvoltage protection |
| Cooling: | Forced air cooling |
| Accessories: | l Input Cables: From Power Grid to HES3-30
l Output Cables: From HES3-30 to SLQ3-20/4 |
Products Information of the Current Generator (Model: SLQ3-20/4)
Electric diagram:

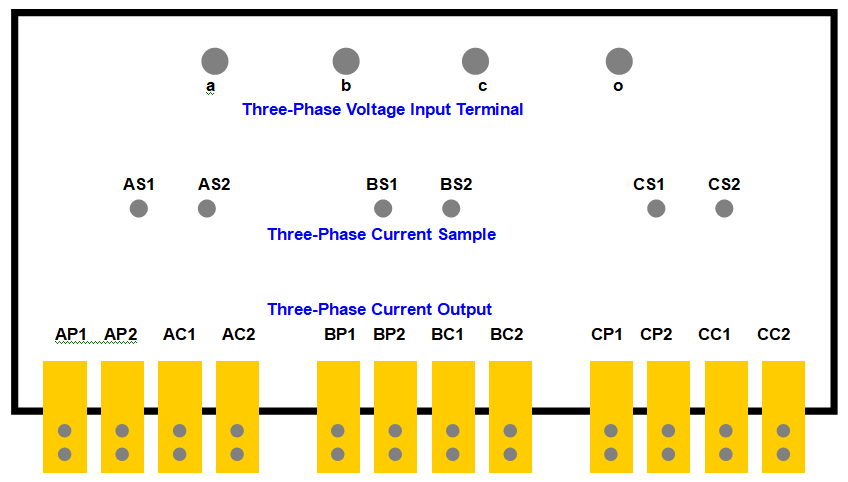

Panel Layout:
Main Technical Data:
|
Input Votlage: |
AC 3x(0-380V), 50Hz |
|
Rated Capacity: |
30kVA/Phase |
|
Output Model of the High-Current: |
l When P2 and C1 in series connection, the output terminal is P1 and C2, the output voltage is 10V, the output current is 2000A
l When P1 and C1 in parallel connection, and P2 and C2 in parallel connection, the output terminal is P1 (C1) and P2 (C2), the output voltage is 5V, the output current is 4000A |
|
Product structure: |
l Stainless steel box
l Provide the movable roller at the bottom of the equipment l Provide the hoisting ring on the top of the equipment |
