Copper Extrusion Machine Equipment composition
Feedstock Pay-off
Feedstock Straightener Unit
Feed-in and Cutting System
Continuous Extrusion Machine (Right Handed Machine)
Water Cooling System
Product Length Counter
Take-up Stand (Type TU-20)

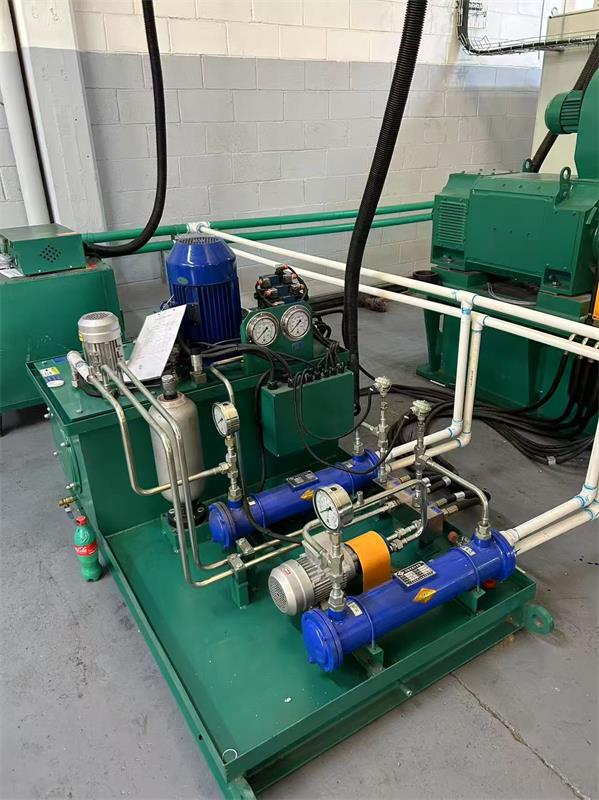

Hydraulic and Lubricate System
300Mpa EHV System
Electric and Computer Control system
Technical parameter for Copper/ Aluminum Extrusion Machine
| Wheel Diameter | 250mm | 300mm | 550mm |
| Main Motor | 45KW/1000rpm | 90KW/1000rpm | 400KW/1000rpm |
| Rotation Speed | 1-11 rpm | 1-12 rpm | 1-8 rpm |
| Rod Diameter | 8 mm± 0.2 mm | 12.5 mm± 0.5 mm | 22 mm± 0.2 mm |
| Min-Max Cross Sectional Area | 5mm2~70mm2 | 10mm2~250mm2 | 400mm2~6000mm2 |
| Maximum Width | 15 mm | 45 mm | 280 mm (or 90mm rod) |
| Output (average) | 100-200Kg/h | 200-450Kg/h | 2300Kg/h |
FAQ
You could give us your rod diameter and Min-Max Cross Sectional Area, we will recommend the right model to you.
We have the very strictly 6s management system, All departments supervise each other. The spare parts and material used on machinery will be checked before start production. And before delivery, we will installation and commission at home, do a comprehensive inspection
Yes, we have the professional team for after-sales service. We will provide installation manual and video when machine delivery, If you need, we can also delegated engineers to visit your site for installation and commission. We promise we will provide 24 hours of online feedback when you need any help.
About Trihope
We are a 5A Class turnkey solution provider for Transformer Industry.
The First A: we are a real manufacturer with complete in-house facilities
The second A, we have a professional R&D Center, having collaboration with well-know Shandong University
The Third A, We have Top Performance Certificated with International Standards likes ISO, CE, SGS, BV
The Forth A, We are better cost-efficient supplier equipped with international brand components like Siemens Schneider, etc. And we provide 24 hours 24-hour after-sales service, providing services in Chinese, English, and Spanish
The Fifth A, We are a reliable business partner, served for ABB, TBEA, ALFANAR, PEL, IUSA etc in the last decades, And our customer are more than 50 countries all over the world.
