China Gantry Type Plasma Cutting Machine manufacturers and suppliers

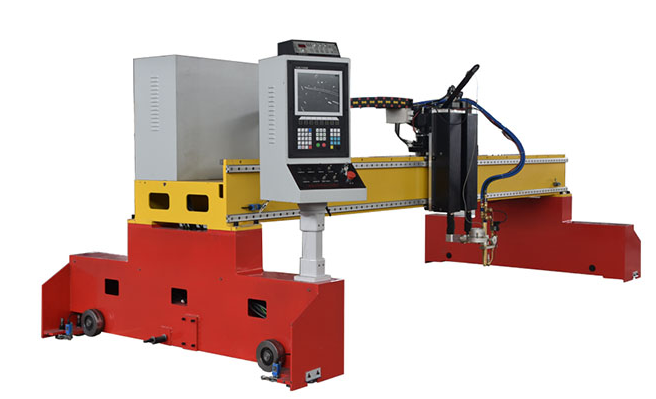

Gantry Type Plasma Cutting Machine Featured Image

Short Description:

The Gantry type plasma cutting machine is an efficient and precise CNC cutting equipment, suitable for processing large format cutting operations of various metal materials. The main cutting materials are metal sheets such as carbon steel, stainless steel, aluminum, copper, galvanized sheet, titanium plate, etc. The cutting ability is usually 0-50mm, and can reach up to 200mm (depending on the power of the plasma power supply)

Send email to us Download as PDF

Product Detail

The Gantry type plasma cutting machine is widely used in the following fields due to its high efficiency, high precision, and large surface cutting ability:

Heavy machinery and equipment manufacturing: large sheet metal cutting for engineering machinery, mining machinery, pressure vessels, boilers, etc.

Shipbuilding: used for precise cutting of large metal components such as ship plates and bulkheads.

Building steel structure: Processing of steel materials such as bridges, building trusses,and steel beams.
Rail transit: Manufacturing of locomotive and vehicle components
Other fields: such as metal crafts, advertising signs, fitness equipment.etc

Model 2560/160A Gantry Plasma Cutting machine Parameter for Reference

2560 160A Gantry Plasma Cutting Machine
LGK 160A plasma source	F2300 control system	Automatic Torch height control	Software starcam

Lateral drive control system	Heavy duty Machine body	Standard export wooden case	2G processing file

Steper motor	High precision square guide rail	Rack and gear	Multi-functional tool box

Machinery Parameters

No	Item	2560
1	X,Y working area	2500*6000mm
	X axis span	2550mm
	Y axis guide rail length	6000mm
2	Z working area	300mm
3	Lathe bed	Very thick steel structure
4	Working voltage	440V three-phase electricity / 60hz/50hz
5	Reposition precision	0.02mm
6	Processing precision	0.5mm
7	Maximum cutting speed	16000mm/min
8	Cutting thickness	Plasma cut up to 35 mm mass cut 25 mm
9	Control system	SJTU-CNC F2300
10	Motors	Steper motor
11	Software	StarCAM
12	Weight	2000 kgs
13	Working Temperature	-10°C-60°C. Relative Humidity, 0-95%.
14	LCD Display Dimension	10 Inches
