Short Description:

Paper Wrapping Machine is a special equipment for producing paper covered wire. Paper covered wire is the winding wire insulated with bare wire or enameled wire as the core, power cable paper, high-density interturn insulation paper or heat-resistant insulation paper as the outsourcing.


Product Detail

Machine Video

5A Solution Provider

FAQ

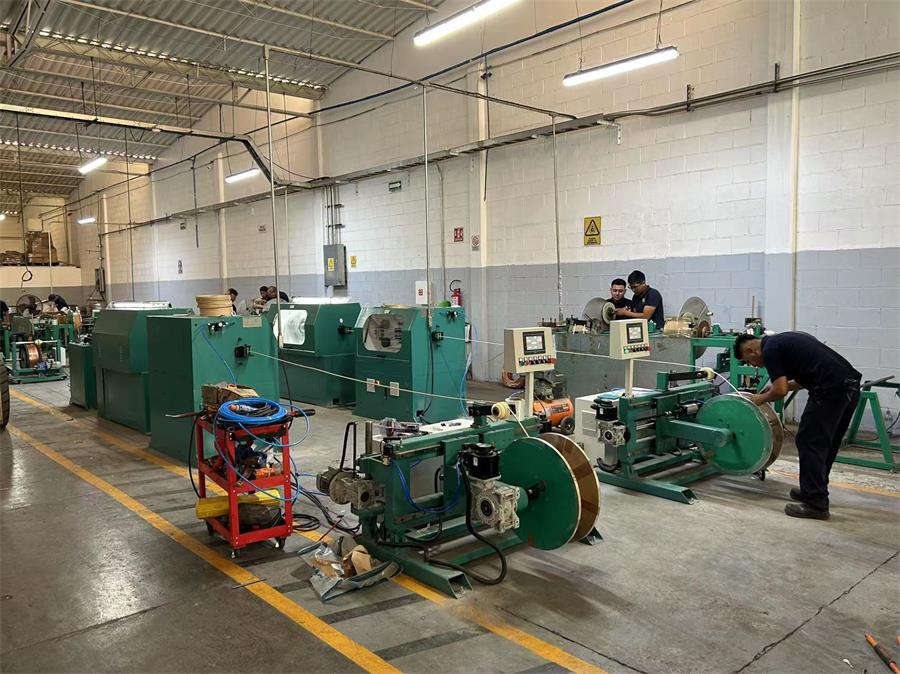

Multi Wire Paper Wrapping Machine include pay-off unit, Main host, take-up unit, Control System etc, with Servo motor control or Mechanical control which can choose accroding to your requirements.

Type of Cable Paper Wrapping Machine:
We have Horizontal type or Vertical type paper wrapping machine with two paper tapping heads, each taping head may wrapping 2 layers of paper, Or customized tapping layer requirements.

Technical parameter for Copper Wire Paper Wrapping Machine
WLZB-2 / 6X model as an example:

Product scope

Copper / Aluminum rectangular wire

Section area

 5-100mm²(1*5mm,5*30mm)

Lapping pitch

10~32 mm, step less adjustable

Lapping head rated speed

800 rpm/min

Normal production rate

 0-600rpm/min(Depending on the size of the gauge, the pitch size)

Paper Pad OD

330 mm

Paper Pad ID

75 mm

Paper Pad width

10~32 mm

Paper thickness

0.040~0.125 mm


  • Previous:
  • Next:


  • We are 5A Class Transformer Home with a full solution for Transformer Industry

    1, A real manufacturer with complete in-house facilities

    image001 image003 image005

    2, A professional R&D Center, having collaboration with well-know Shandong University

    image009 image011 image007

    3, A top performance company certificated with International Standards like ISO, CE, SGS and BV etc

    image013 image015 image017 image019

    4, A better cost-efficient supplier , all key components are international brands like Simens, Schneider and Mitsubishi etc.

    image022 image024 image026

    5, A reliable business partner, served for ABB, TBEA, PEL, ALFANAR, ZETRAK etc

    image028 image030 image032


    Q1: How could we choose the right model of paper wrapping machine?

    A: Please give us your details coil size, material size, special requirements, Our engineer will finalize which model suitable for you.

    Q2: Can you provide the turn-key service of supplying complete machinery and equipment for a new transformer factory ?

    A: Yes, we have rich experience for establish a new transformer factory. And had successfully helped Pakistan and Bangladesh customers to build a transformer factory.

    Q3: Can u provide the After-sales installation and commissioning service in our site?

    Yes, we have the professional team for after-sales service. We will provide installation manual and video when machine delivery, If you need, we can also delegated engineers to visit your site for installation and commission. We promise we will provide 24 hours of online feedback when you need any help.
