Short Description:

Paper Wrapping Machine is a special equipment for producing paper covered wire. Paper covered wire is the winding wire insulated with bare wire or enameled wire as the core, power cable paper, high-density interturn insulation paper or heat-resistant insulation paper as the outsourcing.

Send email to us Download as PDF

Product Detail

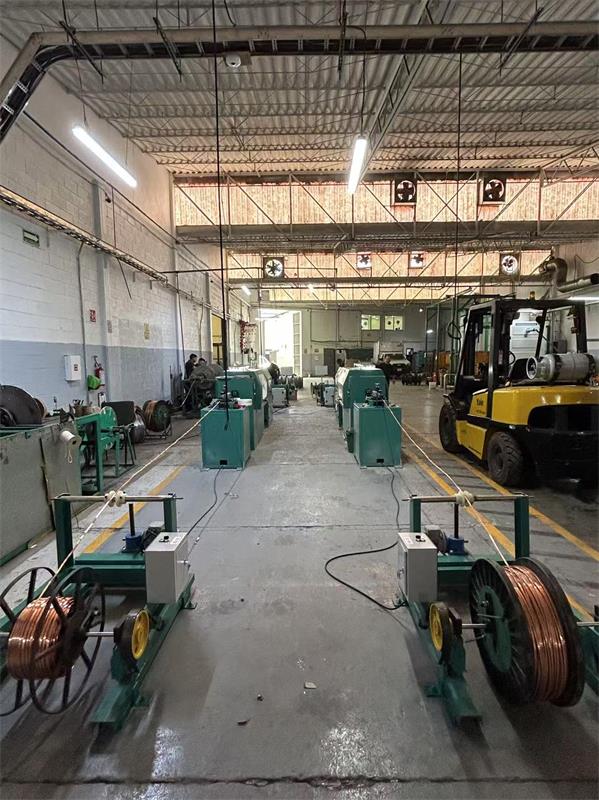

Multi Wire Paper Wrapping Machine include pay-off unit, Main host, take-up unit, Control System etc, with Servo motor control or Mechanical control which can choose accroding to your requirements.

Type of Cable Paper Wrapping Machine:

We have Horizontal type or Vertical type paper wrapping machine with two paper tapping heads, each taping head may wrapping 2 layers of paper, Or 1 product line with 2 paper tapping heads, each taping head may wrapping 4 layers of paper, so it can wrap Max.2*4=8 in total Or customized tapping layer requirements.

Technical Parameter For Copper Wire Paper Wrapping Machine As Recommend

Product scope	Copper / Aluminum rectangular wire
Section area	5-100mm²（15mm,530mm）
Lapping pitch	10~32 mm, step less adjustable
Lapping head rated speed	800 rpm/min
Normal production rate	0-600rpm/min（Depending on the size of the gauge, the pitch size）
Paper Pad OD	330 mm
Paper Pad ID	75 mm
Paper Pad width	10~32 mm
Paper thickness	0.040~0.125 mm
