contract the mandrel --- Move the tailstock for inserting the paper tube --- Insert the paper tube --- expanding the mandrel to tighten the paper tube --- Move the tailstock and press the mandrel tightly --- Input the parameters of the paper tube (mainly: paper tube diameter, paper tube length, Nos of even divisions etc.) --- Click start --- The nozzle finishes marking the first line along the height direction of the paper tube and stops --- The paper tube rotates to the set angle according to the settings and stops --- The nozzle finishes marking the second line along the height direction of the paper tube and stops --- Repeat the marking action until the marking is completed --- Issue a prompt ---Manually remove the paper tube

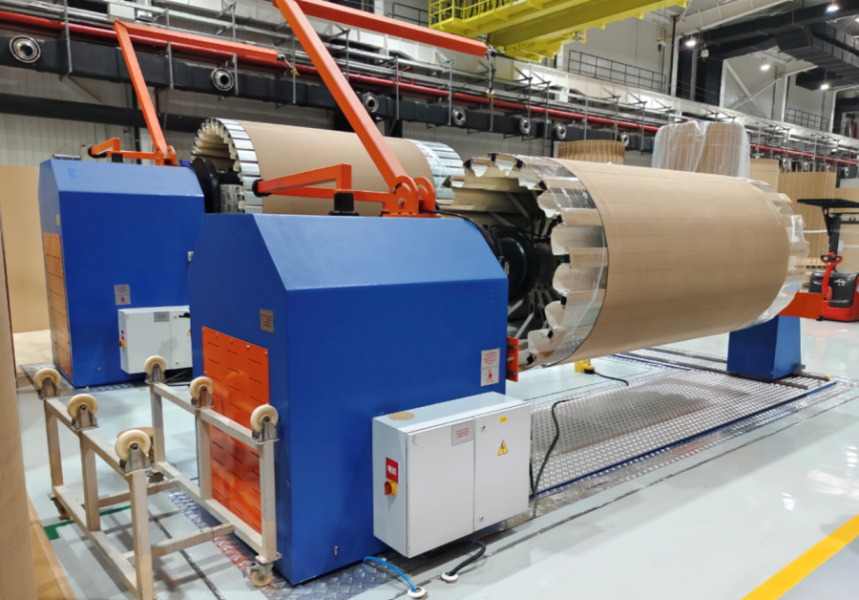

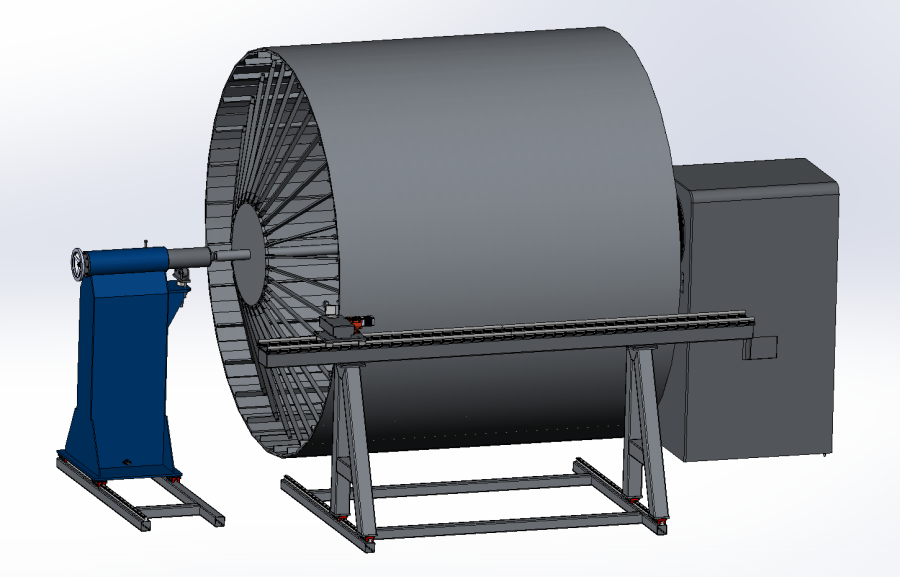

Primarily composed of the rotating head
movable tail stock
adjustable mandrel
marking mechanism
The electrical system.
1. High precision of marking: The line marking accuracy is 0.1°, and the width of the ink jet line is approximately 1mm.
2. Specialized print head and ink are used. The contact area with the paper tube is made of insulating material, thus not contaminating the paper tube.
3. High degree of automation: Only the loading and unloading paper tubes require manual operation. The processes such as paper tube tensioning, evenly dividing, and marking line are all automatically completed without the need for manual intervention.
4. High efficiency: The rotation speed is 2 rpm, and the movement speed of the marking head is 5m/min.
5. Low failure rate: The servo motor and electrical components all use international brands, ensuring safety and reliability.
