China Automatic Transformer Oil tank leakage testing bench manufacturers and suppliers

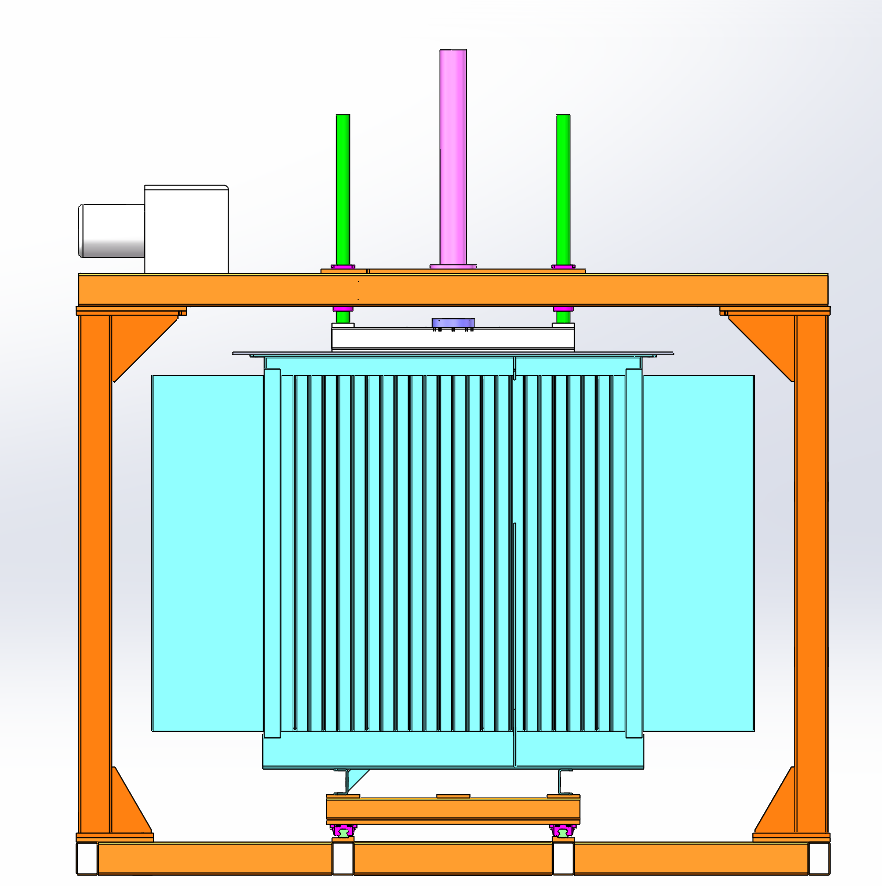

Automatic Transformer Oil tank leakage testing bench Featured Image

Short Description:

Transformer Oil tank leakage testing bench is a special equipment for detecting and welding corrugated oil tank.The principle is that the nozzle inside the tank causes the diesel to be atomized. It is evenly adhered to the inner surface of the tank. It accelerates the penetration of the diesel under the aid of compressed air. According to whether there is diesel impression on the outside of the tank to determine the leakage of the tank.

Send email to us Download as PDF

Product Detail

As the core component of power equipment, the seam welding quality of transformer oil tank directly affects the reliability and safety of equipment operation, When it comes to electrical equipment, transformer oil leaks are a serious issue. Our company design Transformer oil tank water type tester, can quickly inject water from the water tank into the fuel tank and achieve the required pressure for detection; After the detection is completed, the water in the fuel tank can be quickly pumped back to the water tank through a water pump, achieving the recycling of water.

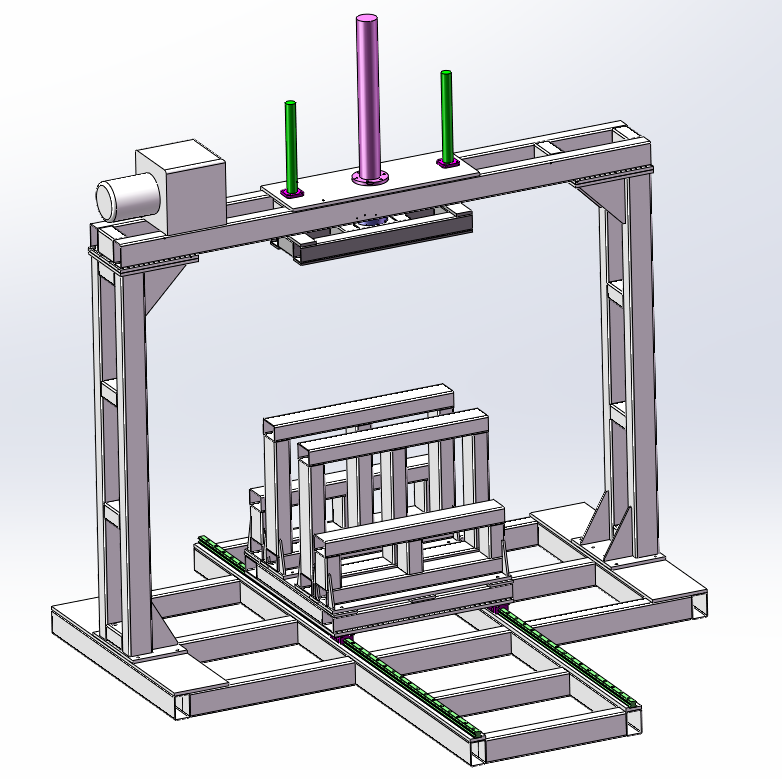

Automatic Transformer Oil tank leakage testing bench-1

Automatic Transformer Oil tank leakage testing bench-2

Main Parameter Of Transformer Oil tank leakage testing bench

Description		Parameter
Model		JLJ-1350/550
Sealing table size	mm	3400*1500
press lifting stoke	mm	1200,Hydraulic lifting
Left and right stoke	mm	1250,Electric walking
Leak detection medium		Water
Oil tank size	mm	External dimensions: max 3200 *2000(including corrugated sheets)Internal dimensionswidth: max 1200Height: Max 2000
Air Supply	MPa	0.7
Total Power	KW	≈7
Power		50Hz,380V

Automatic Transformer Oil tank leakage testing bench

FAQ

How could we choose the right model foil winding machine?

Please give us your details coil size, material size, special requirements, Our engineer will finalize which model suitable for you.

Can you provide the turn-key service of supplying complete machinery and equipment for a new transformer factory ?

Yes, we have rich experience for establish a new transformer factory. And had successfully helped Pakistan and Bangladesh customers to build a transformer factory.

Can u provide the After-sales installation and commissioning service in our site?

Yes, we have the professional team for after-sales service. We will provide installation manual and video when machine delivery, If you need, we can also delegated engineers to visit your site for installation and commission. We promise we will provide 24 hours of online feedback when you need any help.
