Short Description:

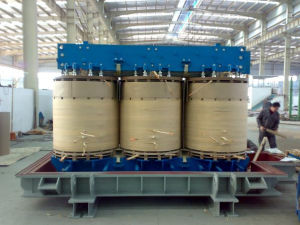

When a transformer is full assembled, the Size and Weight of it can be huge and heavy! These large transformers need to be moved for certain processes or for shipment.Sometimes a crane is used in the workshop to transfer the large
transformers. But the Range of moving may be limited by the track. Plus, When an object weighing several tons to hundreds of tons is moving in the air, it could be very dangerous .So, Transport by air cushion vehicle is also a common solution.


Product Detail

The advantage of Air Low center of gravity : The high of the cushion cart is low, the top surface is low, and materials to be move can be close to the ground.

Low pressure exerted on the ground: cushion cart has a large contact area, even when carrying hundreds tons of loads.

Flexibility/easy maneuvering : A simple push and walk actions required by workers

Parameters Of The AGV

Carrying Capacity: 150 tones;

Own weight : 12 tones;

Size: 5500X2380X420mm( (FINAL SUBJECT TO COUNTERSIGNED DRAWING)

lifting ability; 100mm

Drive unit and wheels: 4-drive unit, 8 wheels;

Suspension: Hydraulic suspension, to even the force to each wheel;

Motor: Low voltage servo motor + independent servo controller;

Ground bearing requirement : 15T/㎡

Slope climbing ability: less than ≤2°;

Working environment: Indoor

Ingress protection: IP54,

Battery: 96V/200AH lithium iron phosphate battery;

Charging: Manuel charging

Charging time: 3 hours, 10%-95%;

Moving ability: Move straight forward and backward, Move straight at lateral direction, Rotate on spot, Moving straight at diagonal direction, and sharp turning;

Moving speed: Max 15m/min;

Braking distance: Full load ≤ 400mm, No load ≤ 300mm;

Safety protection: Obstacle detection by Laser + Sound and light alarm + Anti-collision rubber strip + Emergency stop button.

Composition Of This Vehicle

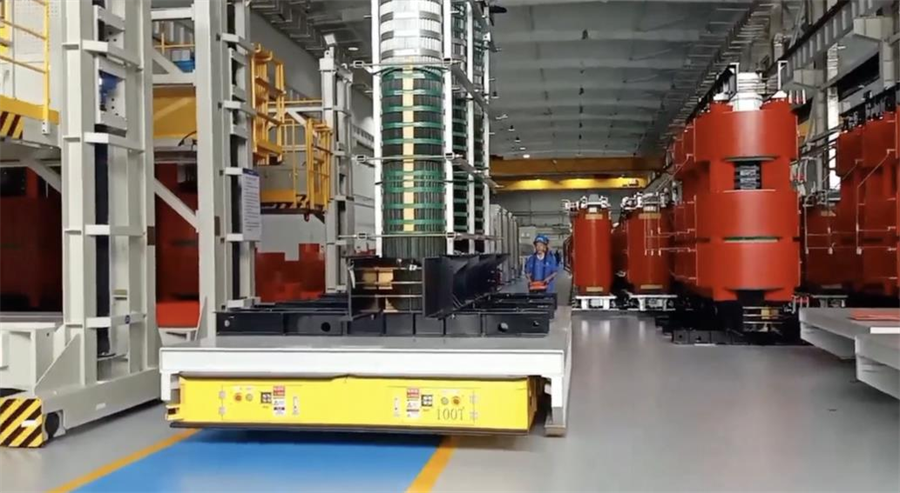

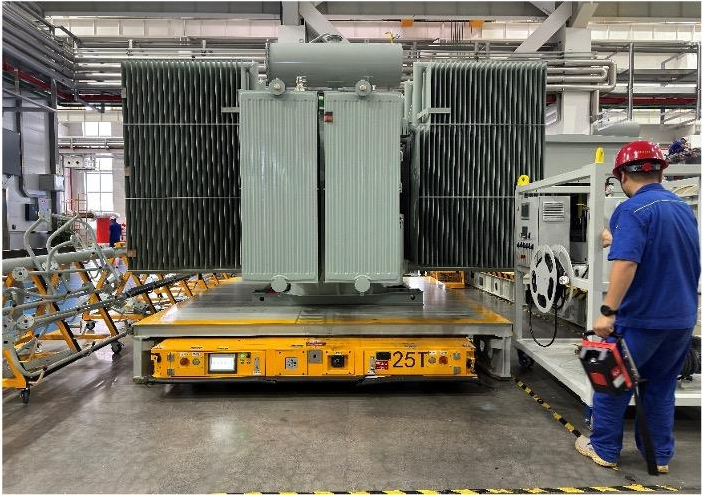

Transformer AGV

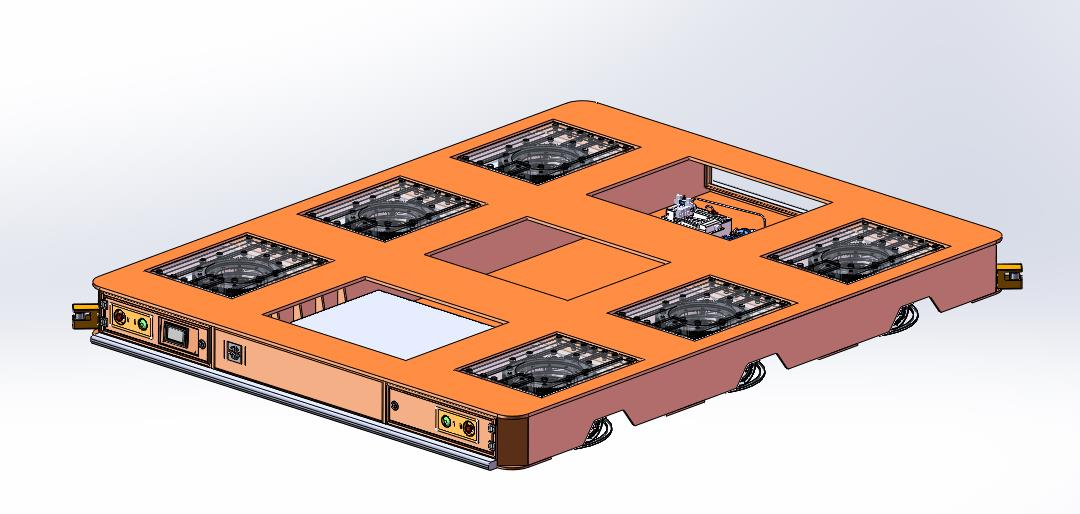

The project is mainly composed of the frame, drive wheel module, drive wheel suspension mechanism, main control unit, industrial remote control, wheel servo motor and drive, planetary reducer, hydraulic power unit/valve group, power battery group, low voltage electrical appliances, LiDAR sensors, charging accessories, control system and so on.

Features Of Ultra Low Heavy Load Flat Mover

SUPER DRIVE & ULTRA-LOW LOAD SURFACE

Supports up to 20 drives working synchronously, the height of each drive is low, which makes the load surface to be as low as possible, Even on a 100-ton flat mover, the upper surface can low to 420mm.

MODULAR DESIGN + HIGH STABILITY

Drive module, control cabinet, hydraulic system and other modular design and production, car body finite element analysis + electrical verification calculation + collaborative control software and other technologies mature, stable and reliable.

MULTIPLE SECURITY PROTECTION

On the edge of the Body. Contact laser sensor detection contact anti-collision bar + three-color light + speaker + emergency stop + wireless emergency stop + remote control emergency stop.

DIFFERENTIAL DRIVE + LOW GROUND PRESSURE

Double wheel differential drive, multiple wheels uniform load, small pressure to

the ground, good ground protection.

Transformer AGV-3
